| Model:MIG-series(MINI-MIG-150) |
|
 Parameters |

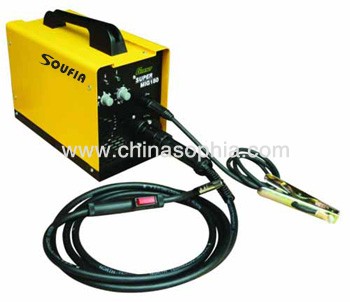

| Welding machine: MIG-150 |
| Features: |
| 1.Single-phase, portable, fan-cooled wire welding machine for MIG/MAG (gas) welding |
| 2.With thermal protection, complete with welding accessories for welding different types of materials. such as steel, stainless. |
| 3.The kit for welding different types of materials such as steel, stainless steel. |
| 4.Steel and aluminum is available on request. |
|
Item |
MIG150 |
MIG180 |
|
Mains voltage |
230 |
230 |
|
Rated power |
6.9KVA/150 35% |
6.9KVA/150 35% |
|
Connection cable,fuse delayed |
60% 5.3KVA/120A |
60% 5.3KVA/120A |
|
100% 4.2KVA/100A |
100% 4.2KVA/100A |
|
2.5MM2-S-3.3m/16A |
2.5MM2-S-3.3m/16A |
|
Load capacity 40? |
150A/21.5V35% |
150A/21.5V35% |
|
Open circuit voltage |
60% 120A/20V |
60% 120A/20V |
|
100% 100A/19V |
100% 100A/19V |
|
22-31V |
22-31V |
|
Efficiency at max.current |
0.8 |
0.8 |
|
Welding range |
40-150A/14-22V |
40-150A/14-22V |
|
Dimensions(MM) |
400x180x340 |
400x180x340 |
|
Weight(KG) |
9.4 |
9.4 | |
