| Model:MMA-161STEEL |
|
 Parameters |

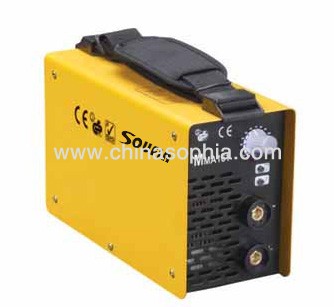

| DC inverter welding machine: MMA -161Steel |
| Features: |
| 1.Single-phase, portable, fan-cooled, inverter welding machine for MMA and TIG electrode welding in direct current DC) with scratch striking. |
| 2.High welding current stability in spite of mains voltage fluctuations. |
| 3.Usable electrodes; acid alkalescent stainless steel cellulose. |
|
Item |
MMA111 |
MMA111 |
MMA141 |
MMA161 |
|
Power voltage(V) |
115 |
230 |
230 |
230 |
|
Absorbed current(A) |
19.6/29 |
9.8/16.5 |
13/25 |
13/32 |
|
Max input power(KVA) |
2.4 |
2.8 |
3.5 |
4.5 |
|
Mains fuse(A) |
20 |
10 |
16 |
16 |
|
Efficiency |
0.83 |
0.83 |
0.85 |
0.85 |
|
Power factor |
0.7 |
0.7 |
0.6 |
0.6 |
|
Max No load Voltage(V) |
85 |
85 |
85 |
85 |
|
Current range(A) |
5-85 |
5-85 |
5-120 |
5-150 |
|
Max current(A) |
85@25% |
85@25% |
120@15% |
140@10% |
|
Current at 60%(A) |
60 |
60 |
70 |
70 |
|
Usable electrodes |
1.6-2.5 |
1.6-2.5 |
1.6-3.2 |
1.6-4 |
|
Insulation class |
H |
H |
H |
H |
|
Protection degree |
IP21 |
IP21 |
IP21 |
IP21 |
|
Measurement(MM) |
365x230x330 |
365x230x330 |
365x230x330 |
365x230x330 |
|
Weight(KG) |
7 |
7 |
7 |
7 | |
